Quick Pro TR:ONE Carbon Triathlon TT Frameset Size L Integrated Aero Cockpit

Quick Pro TR:ONE Carbon Triathlon / TT Frameset – Size Large

Built for uncompromising speed, the Quick Pro TR:ONE is a full-carbon triathlon and time-trial platform designed around aerodynamics, integration, and adjustability. Its aggressive aero profile combines a highly sculpted carbon frame with an integrated cockpit, hydration system, and storage for a clean race-ready setup.

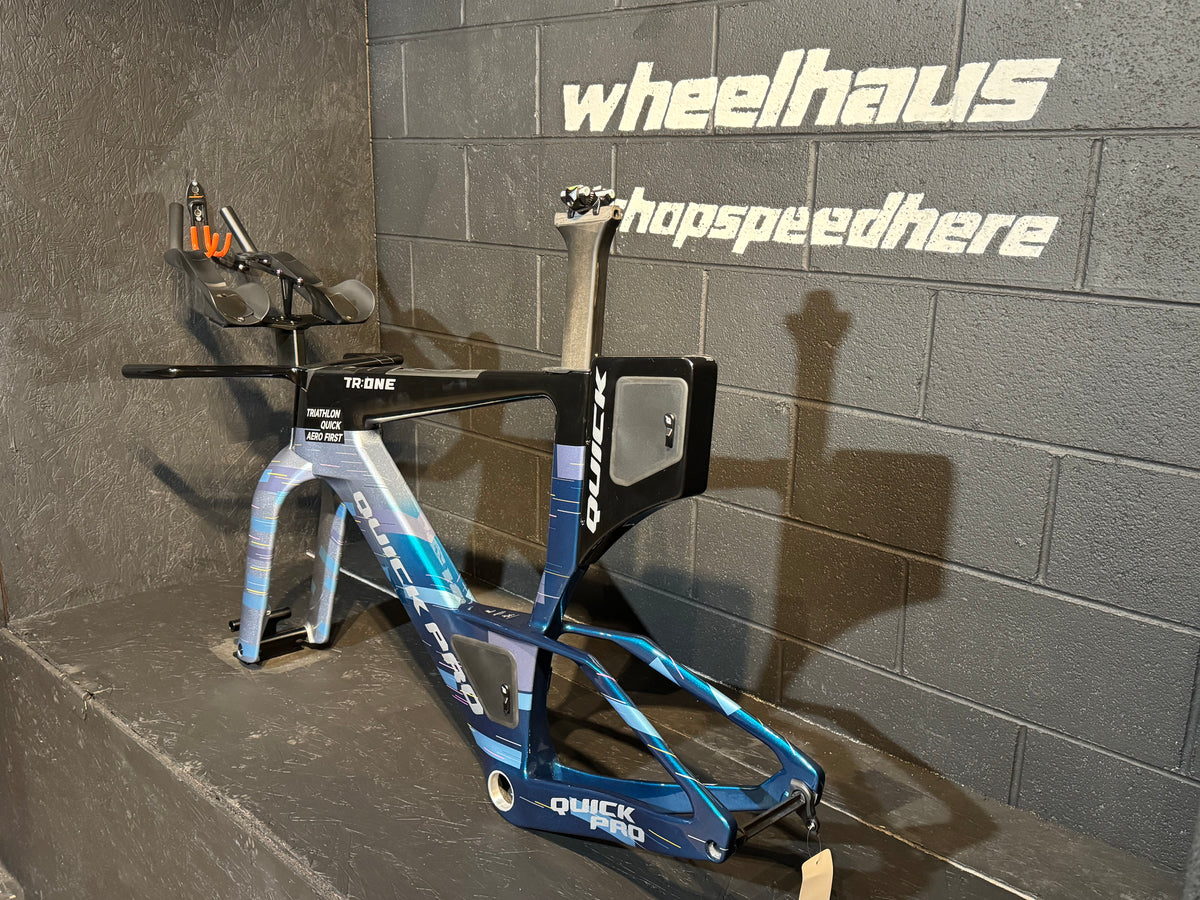

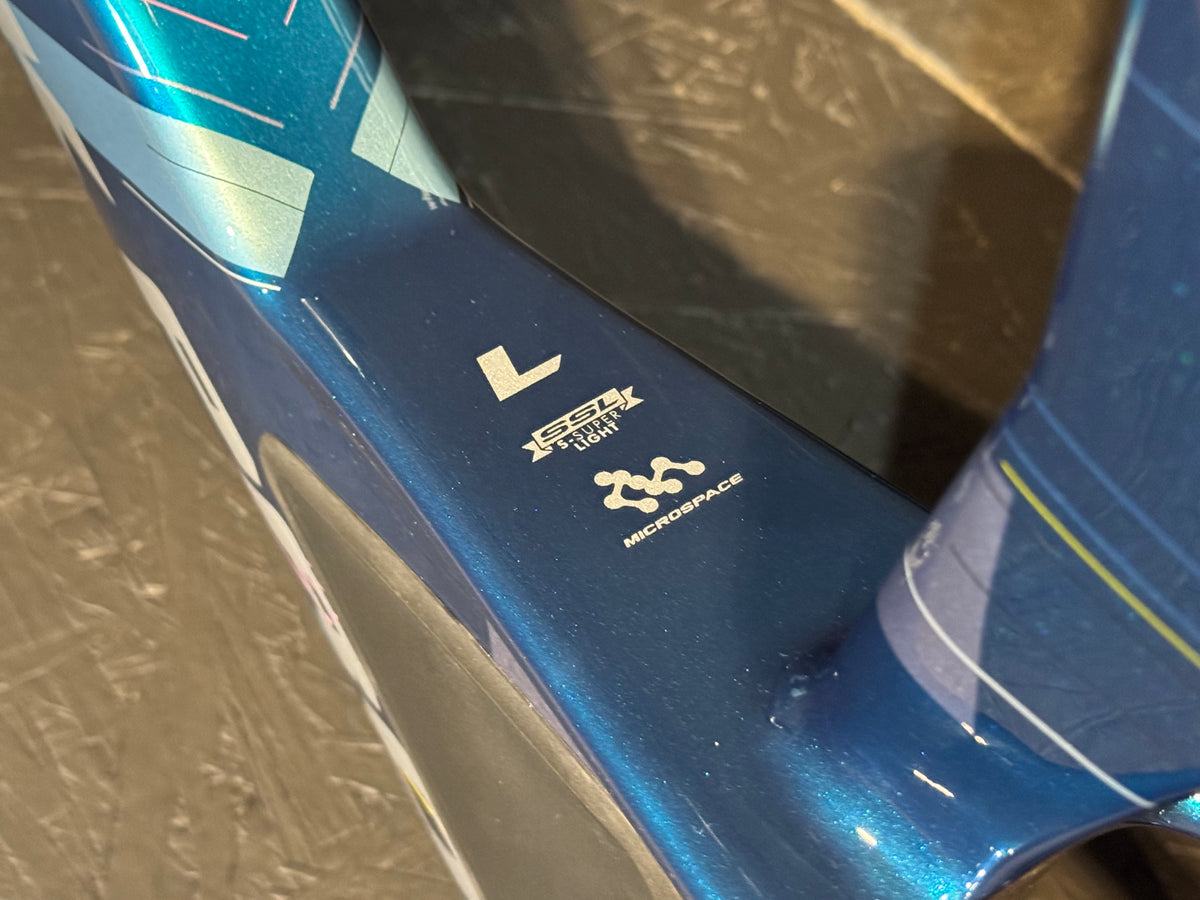

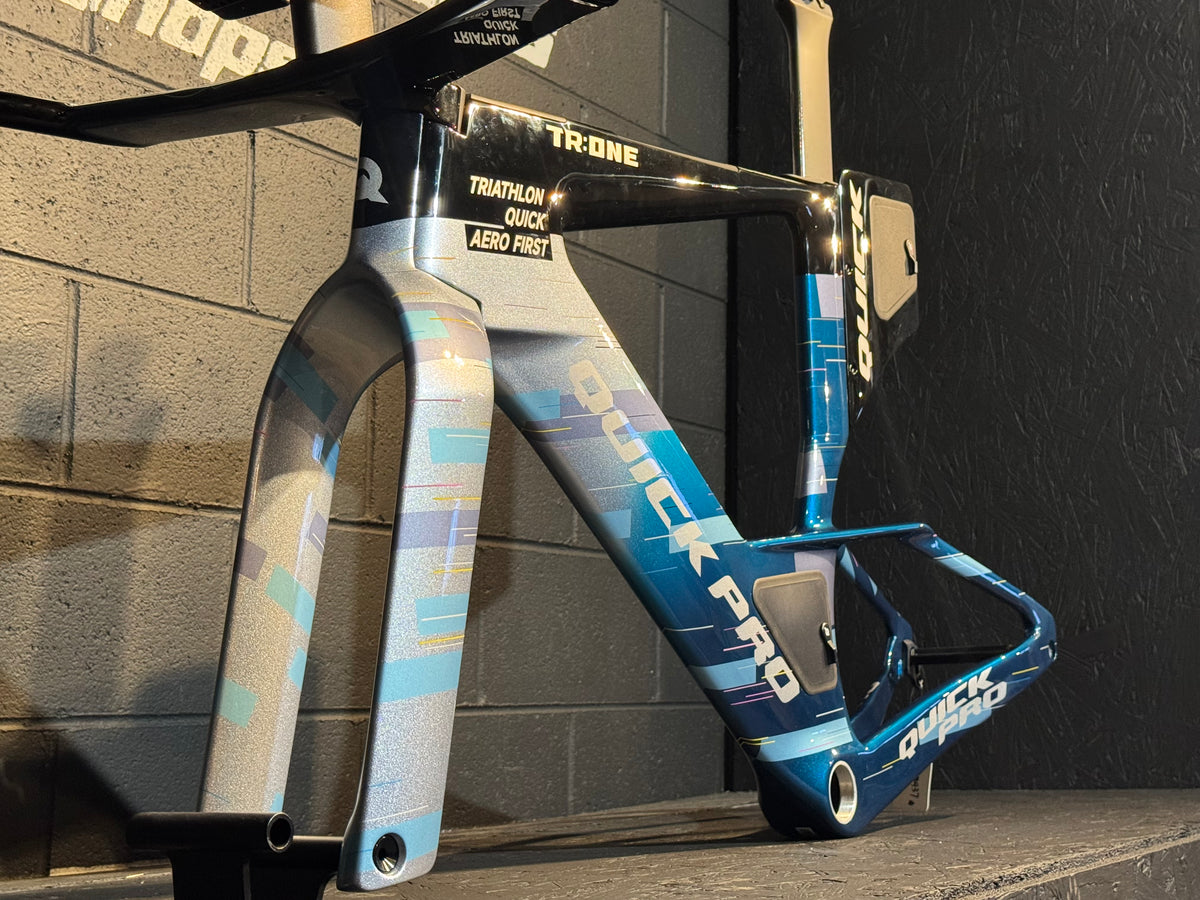

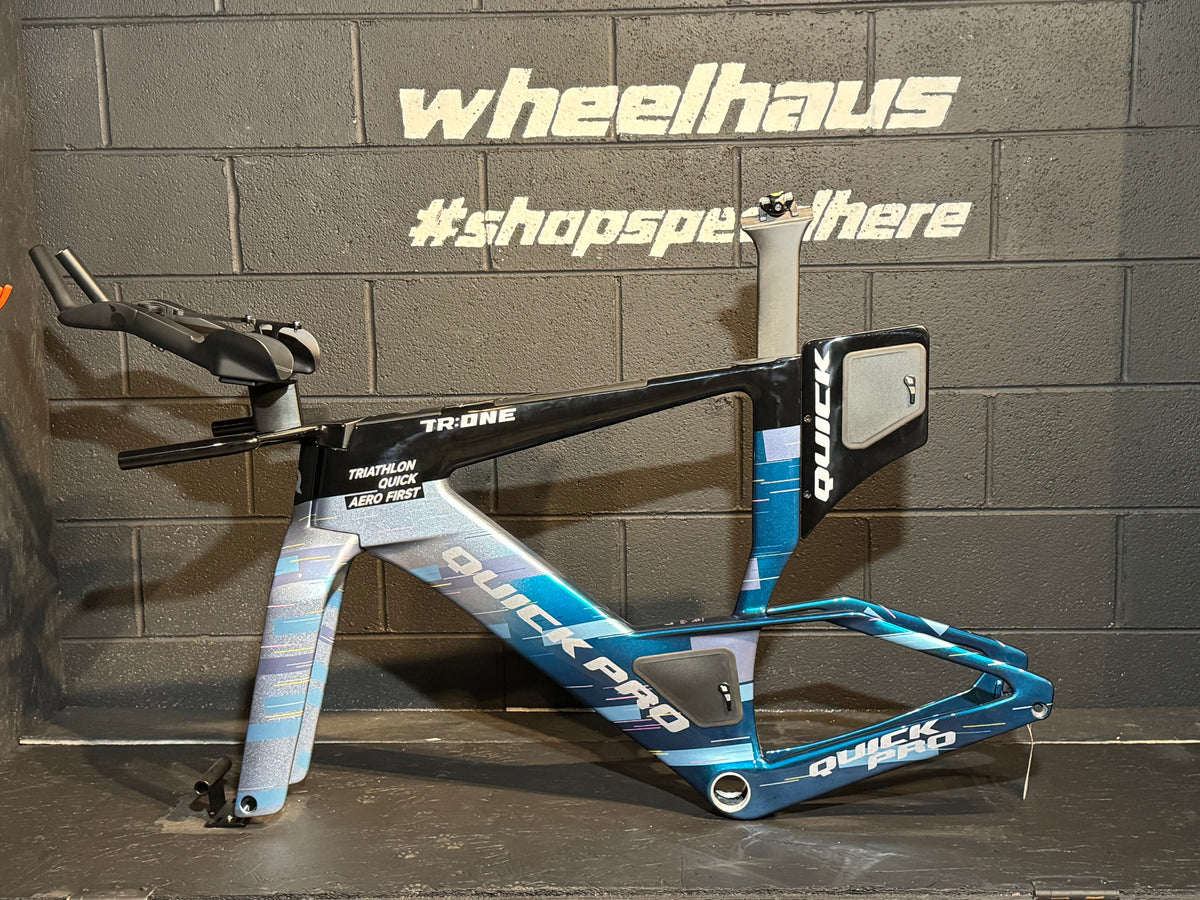

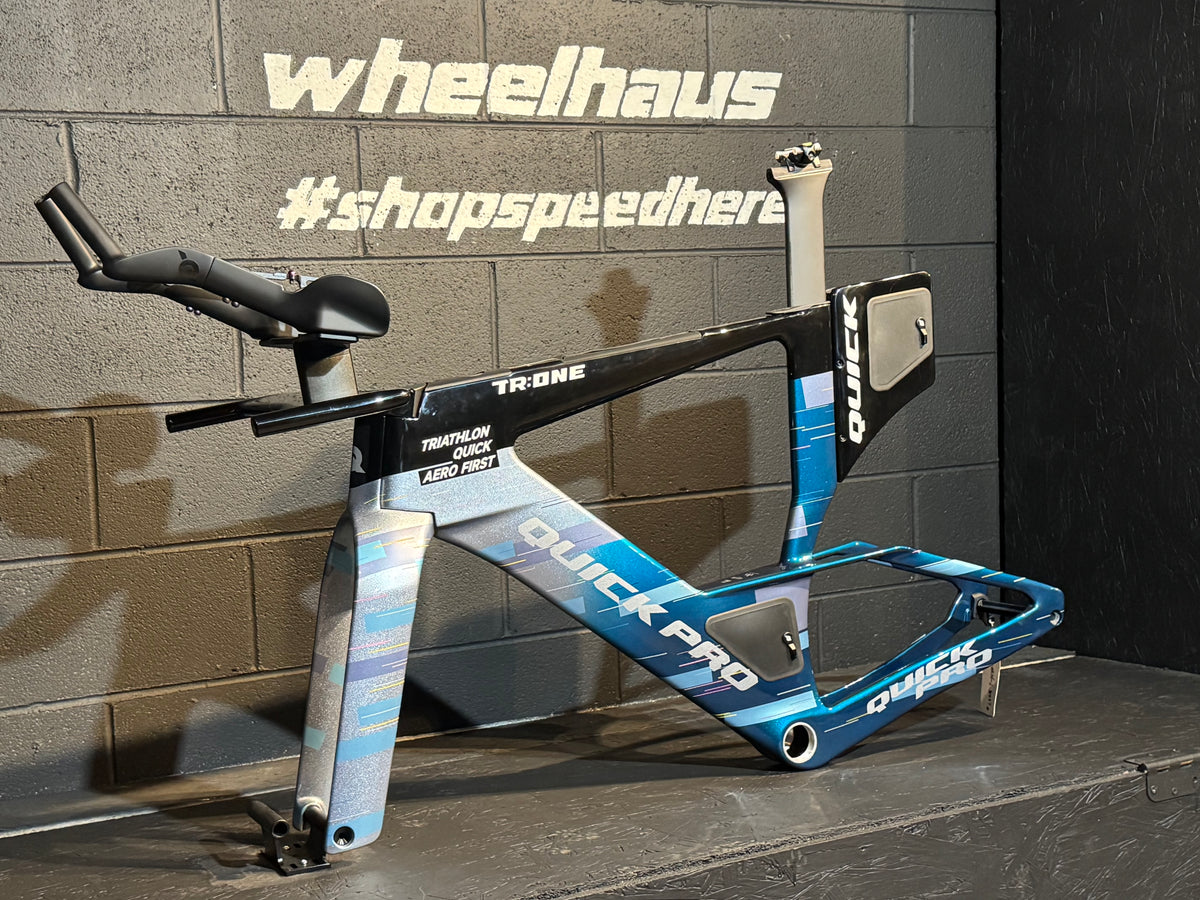

This Size Large frameset features Quick Pro’s distinctive metallic blue, silver, and black finish and includes the proprietary TR:ONE components shown in the photos.

Frameset Specifications

• Model: Quick Pro TR:ONE
• Size: Large (L)
• Frame: High-modulus carbon fiber aero frame
• Fork: Full-carbon aero fork
• Seatpost: Proprietary TR:ONE carbon aero seatpost

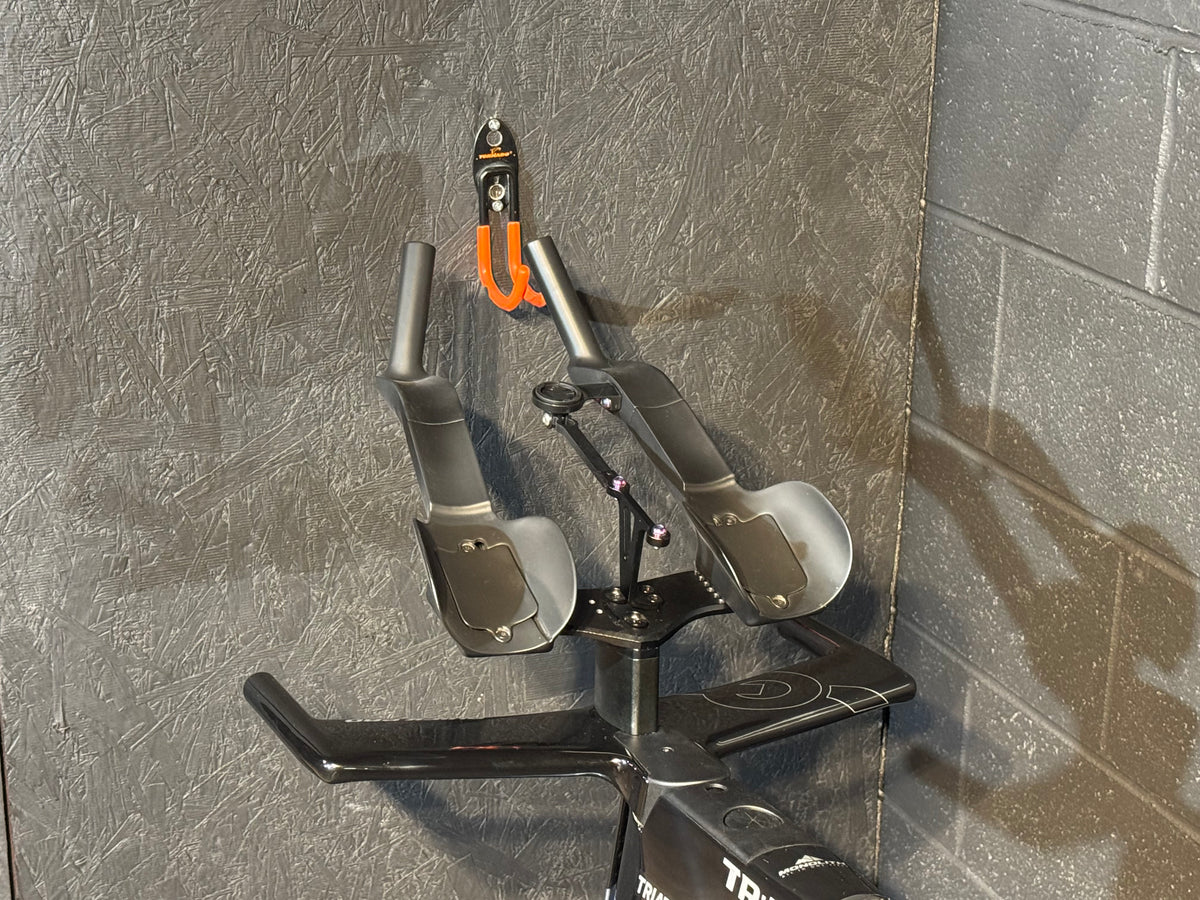

• Cockpit: Integrated TR:ONE triathlon/TT cockpit
• Extensions: Adjustable aero extensions with armrests
• Brakes: Flat-mount disc
• Wheel Size: 700C
• Maximum Tire Clearance: Up to 700 × 32c
• Bottom Bracket: T47-68 threaded
• Front Axle: 12 × 100 mm thru-axle
• Rear Axle: 12 × 142 mm thru-axle
• Cable Routing: Fully internal
• Hydration: Integrated concealed hydration system
• Storage: Integrated aerodynamic storage compartments
• Computer Mount: Integrated cockpit mounting provision
• Color: Metallic Blue / Silver / Black

Size Large Geometry

• Stack: 560 mm
• Reach: 443.5 mm
• Effective Top Tube: 563 mm
• Seat Tube Angle: 78°
• Head Tube Angle: 73°
• Head Tube Length: 108.5 mm
• Chainstay: 410 mm
• Wheelbase: 1,035 mm

Included

Frameset is offered with the frame, fork, proprietary aero seatpost, integrated TR:ONE cockpit/aero extensions, armrests, storage system, hydration components, and associated proprietary hardware as pictured.

Whether you’re building a dedicated Ironman machine or an all-out time-trial bike, the TR:ONE provides a modern, highly integrated platform with plenty of room to customize the final build around your preferred drivetrain and wheelset.

Available now from Wheelhaus Cycling.
