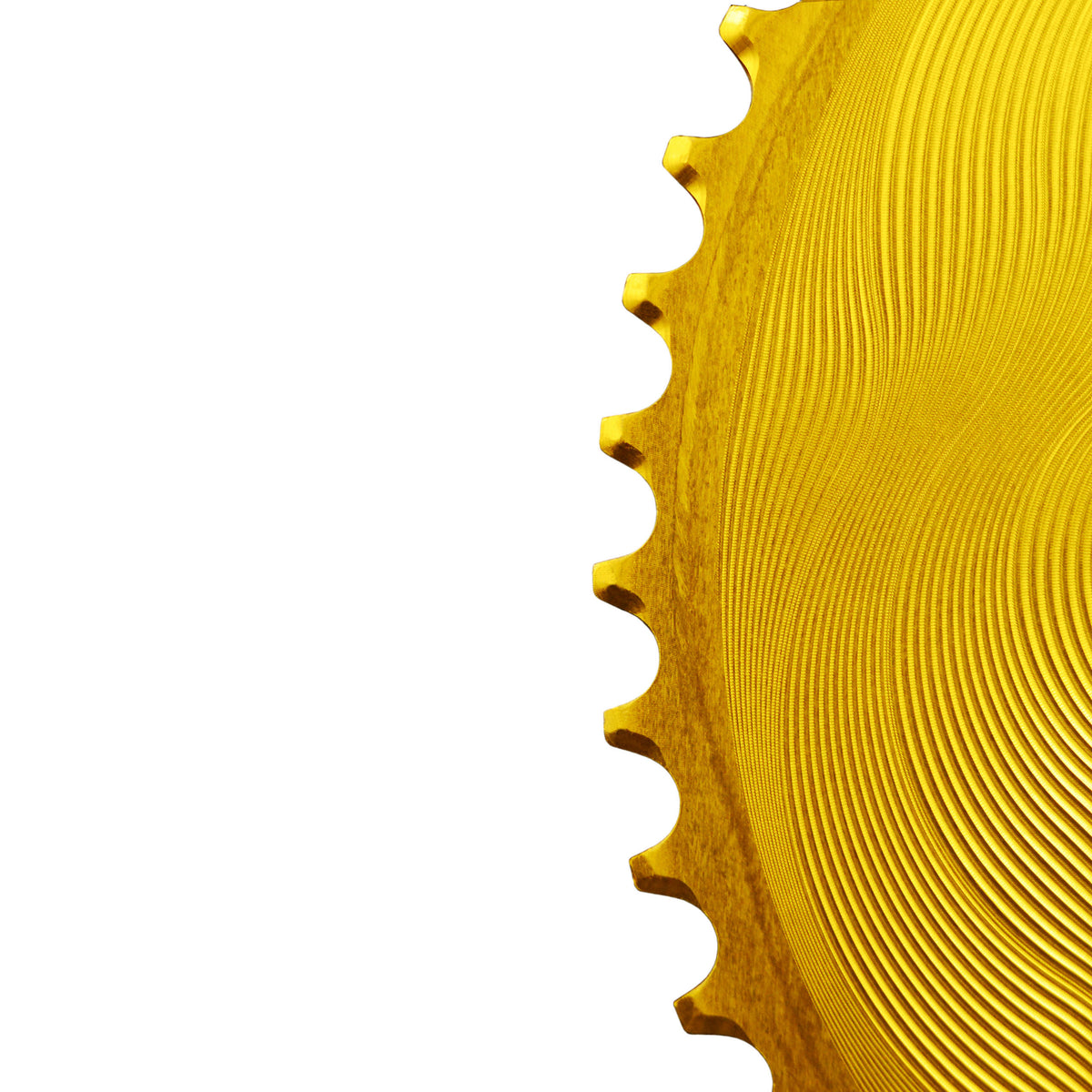

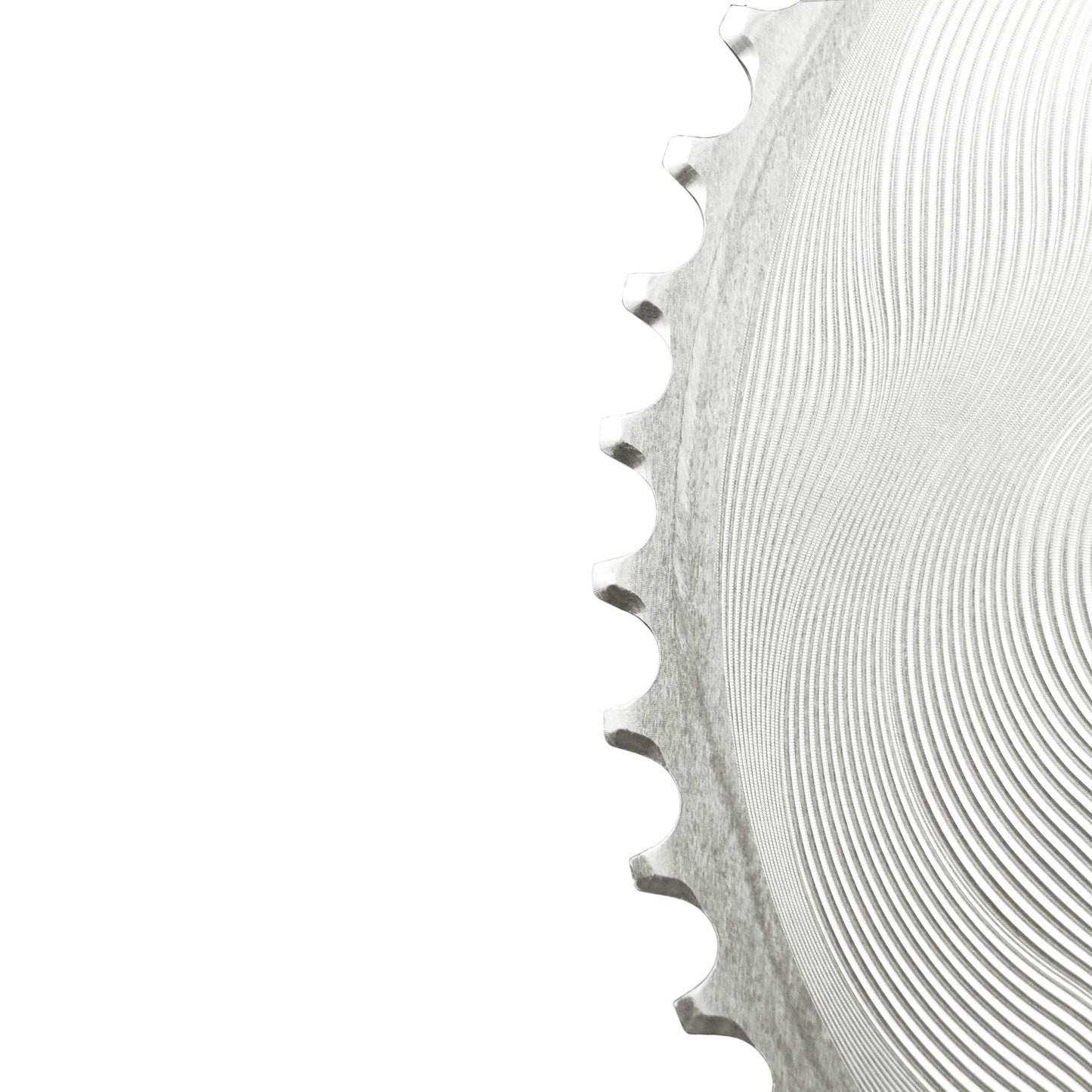

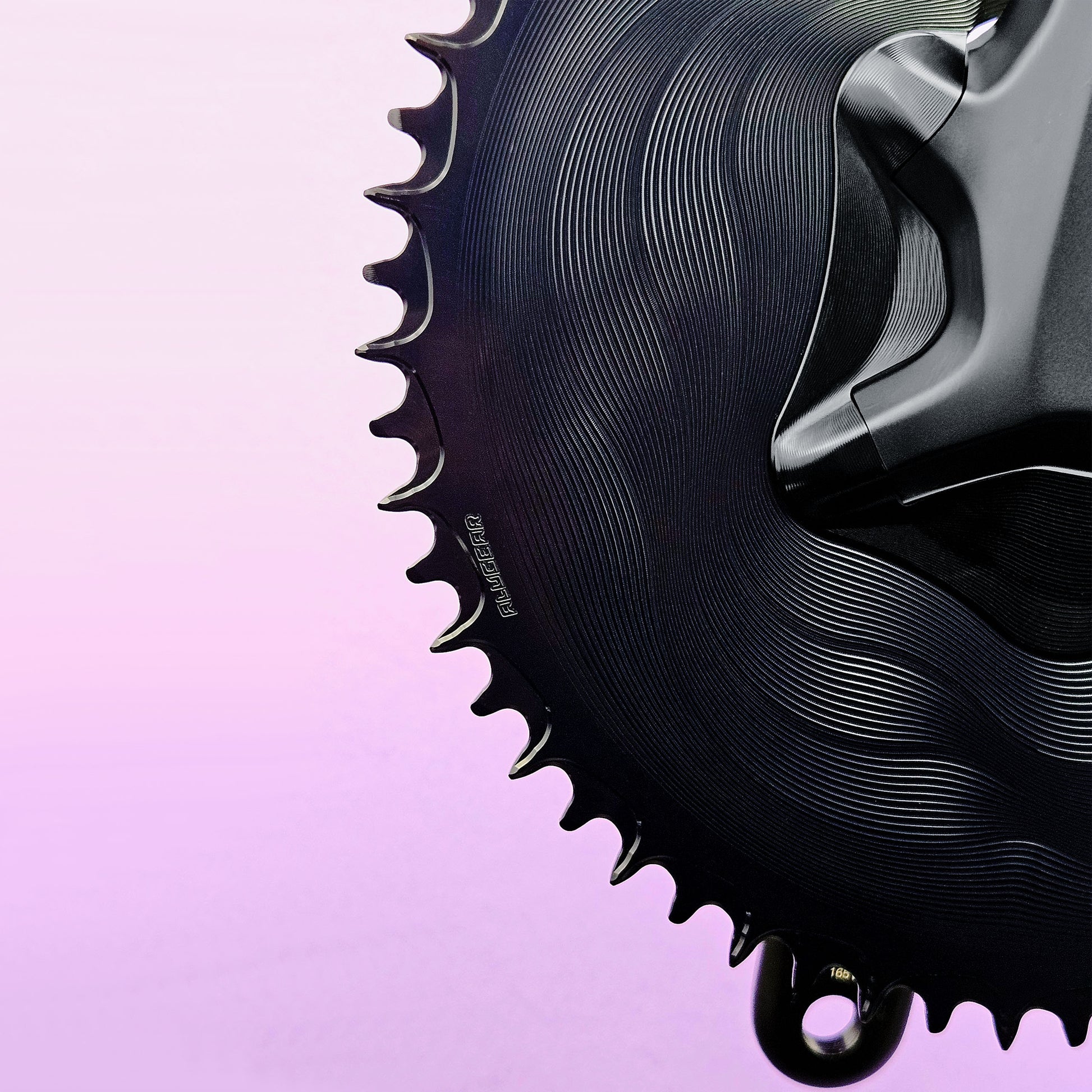

Round 1X AERO Thread Mount 6,5mm Road/Gravel

Round 1X AERO Thread Mount 6,5mm Road/Gravel

$127.00 USD
$127.00 USD
Sale Sold out
Shipping calculated at checkout.
SIZE

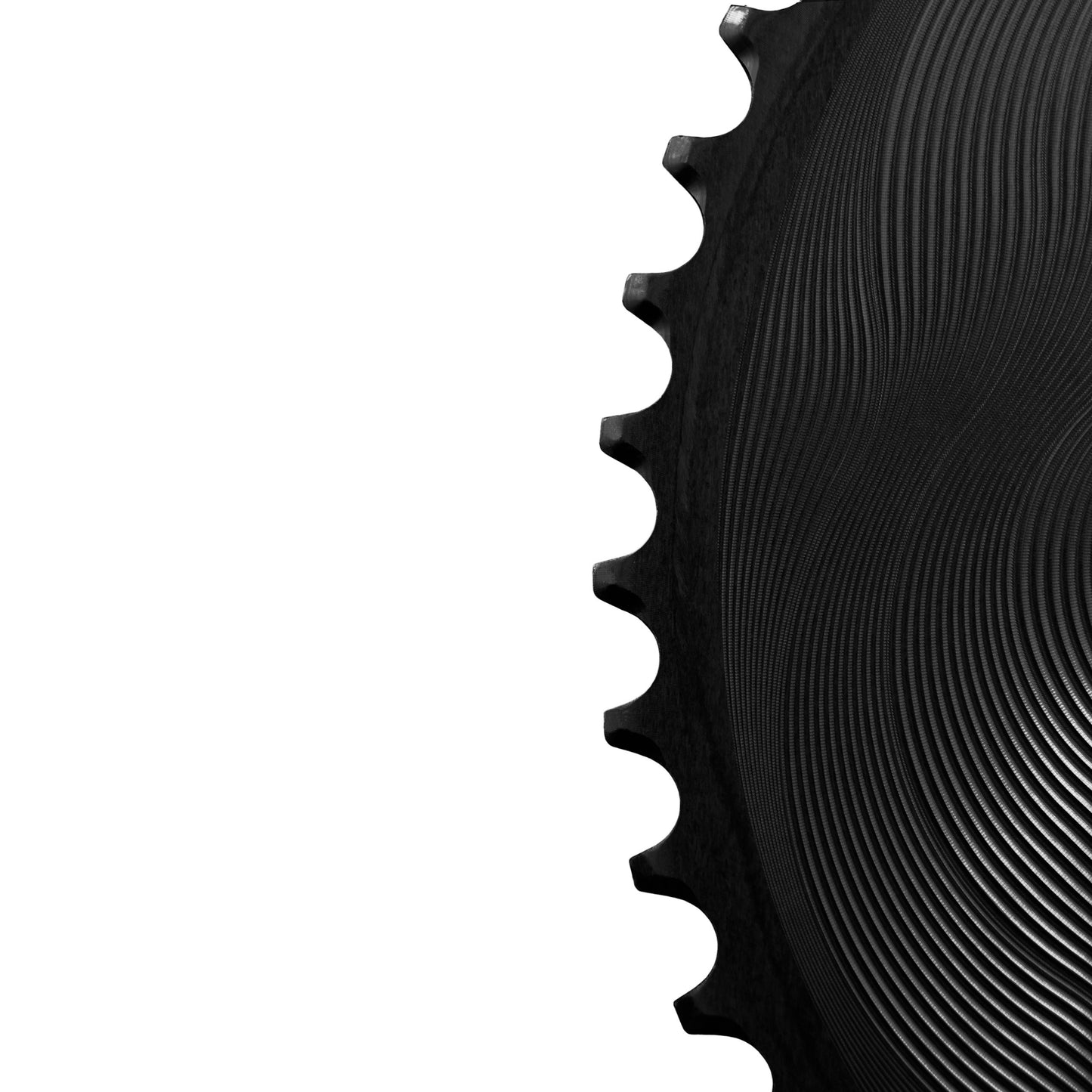

Color: Black

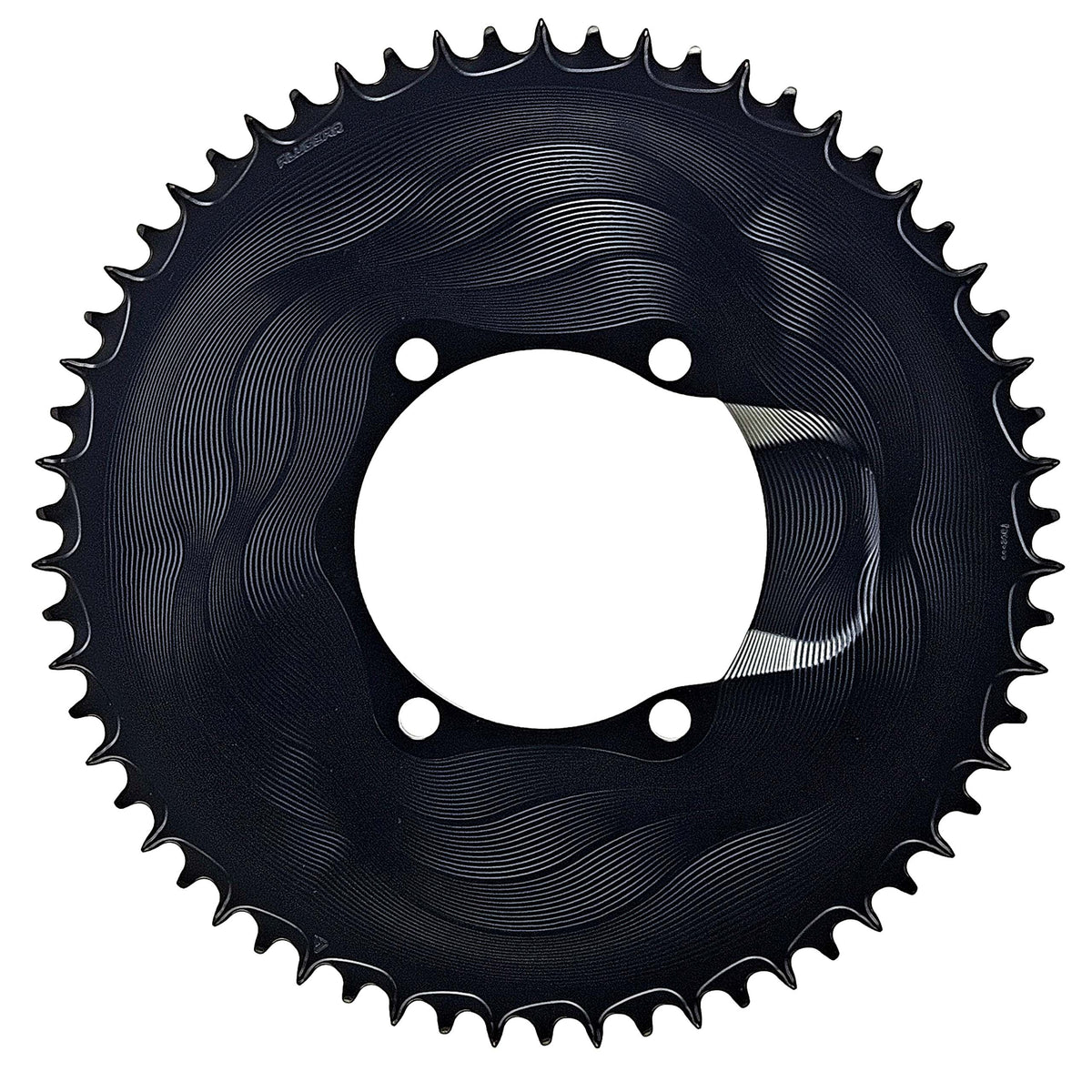

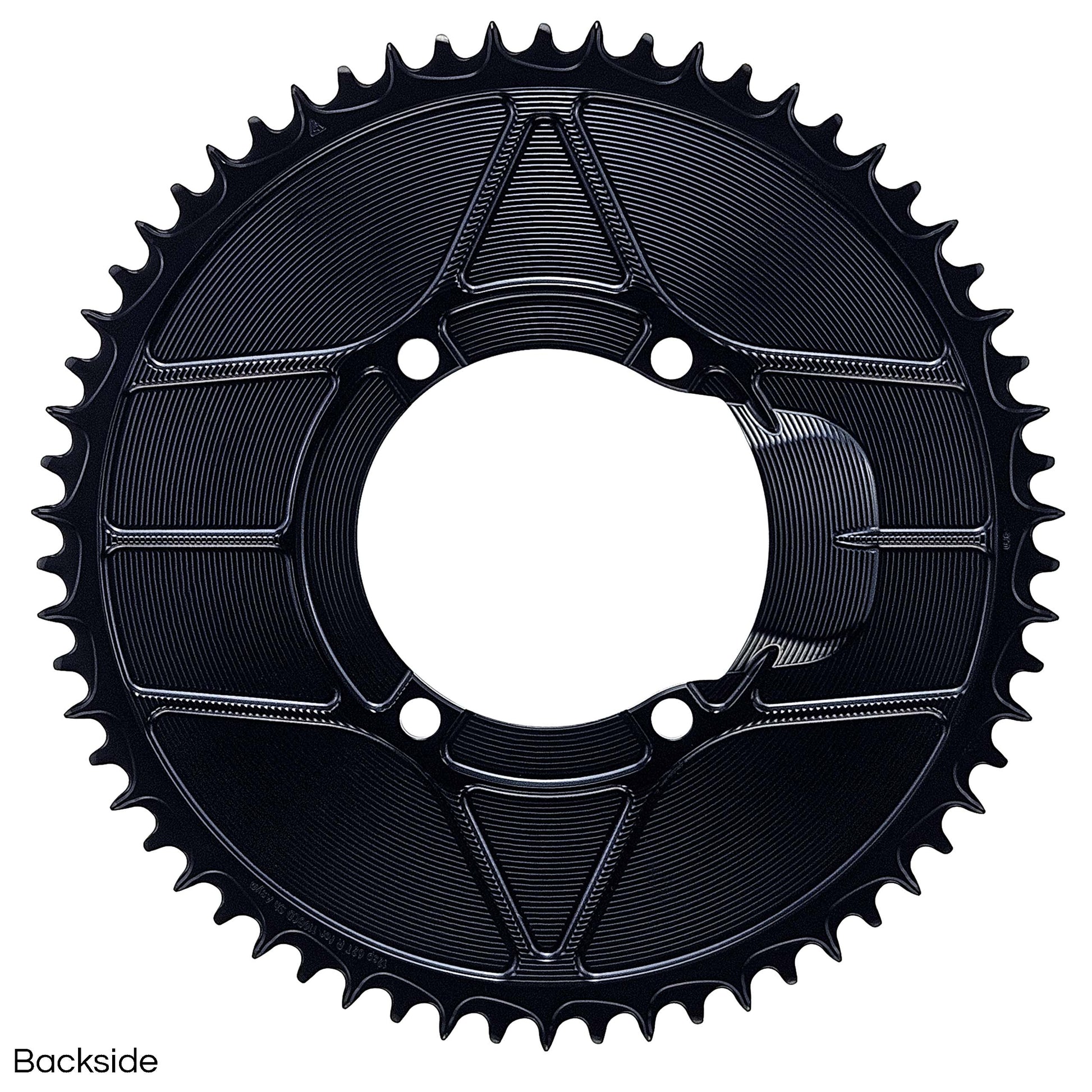

Chainring 1-speed narrow-wide Round for 12sp 110 BCD 4b Shimano Asymmetric Road 1x1

TECHNICAL SPECIFICATIONS

INTENDED USE
 Road,Time Trial, Gravel bikes
OFFSET
 38T-52T 3,0mm; 54T 2,0mm; 56T 1,0mm; 58T 0,0mm; 60T -1,0mm; 62T -1,5mm (The offset on larger chainrings is designed to provide adequate clearance to the frame chainstay)
DIAMETER
 38T- 161,3mm; 40T- 171,0mm; 42T- 179,0mm; 44T- 187,0mm; 46T- 195,5mm; 48T- 202,4mm; 50T- 210,4mm; 52T- 219,0mm; 54T- 227mm; 56T- 235mm; 58T- 243mm; 60T- 251mm; 62T- 259mm
WEIGHT
 38T- 61g; 40T- 72g; 42T- 78g; 44T- 86g; 46T- 94g; 48T- 103g; 50T- 109g; 52T- 119g; 54T- 130g; 56T- 142g; 58T- 152g; 60T- 168g; 62T- 189g
MATERIAL
 Aluminum 7075-T6
MADE
 CNC milling
SURFACE COATING
 Anodizing
TECHNOLOGY
 Narrow Wide chainring teeth (1-speed)

COMPATIBILITY

SHIFTING
 Shifting: 1x12
CHAINS

Chainrings you may use the following chains: 12sp Shimano HG+; 12sp SRAM Flattop; KMC chains;

NOTE: the chainring 1X (1-speed, single) is not compatible with 2X (2-speed, double setups)
CRANKS

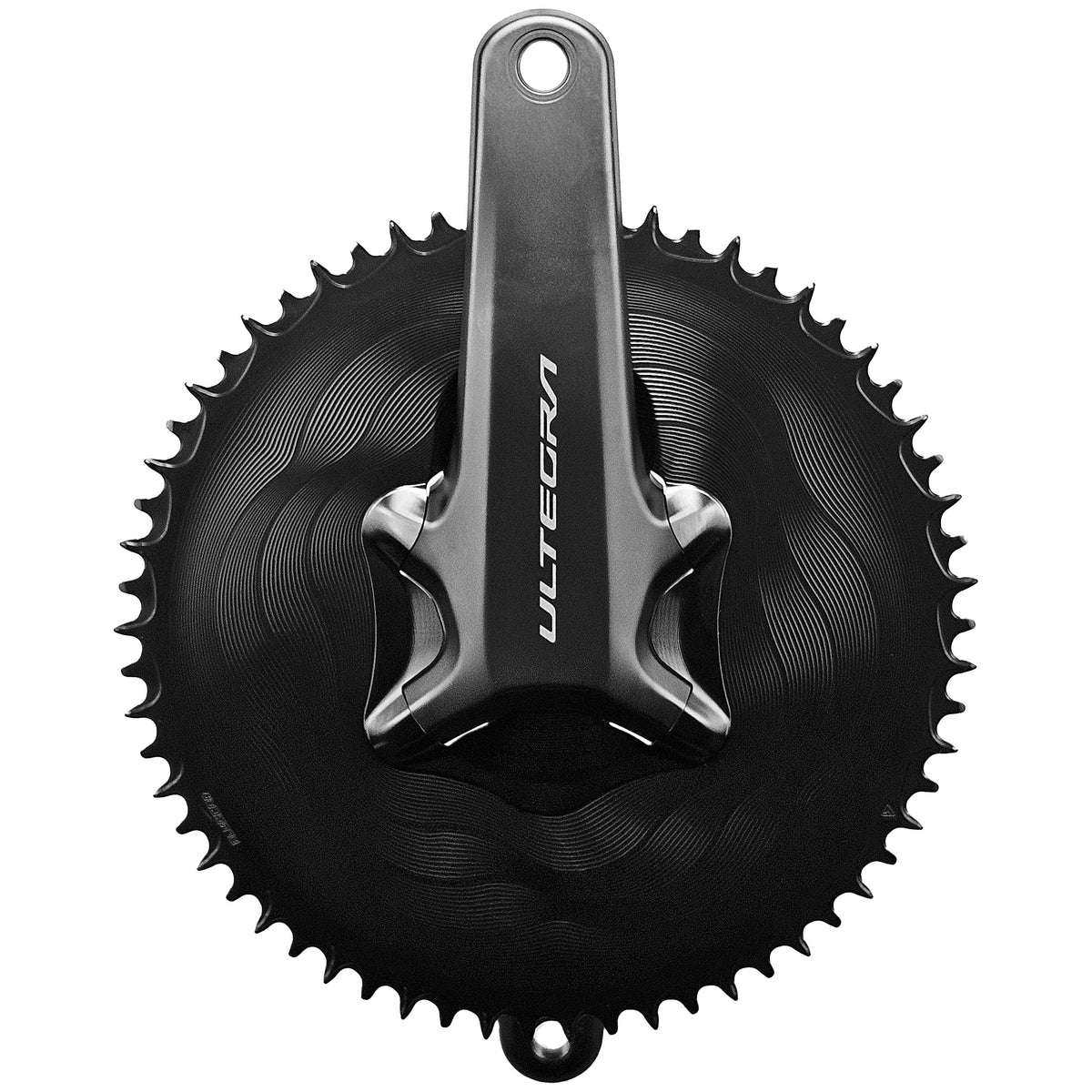

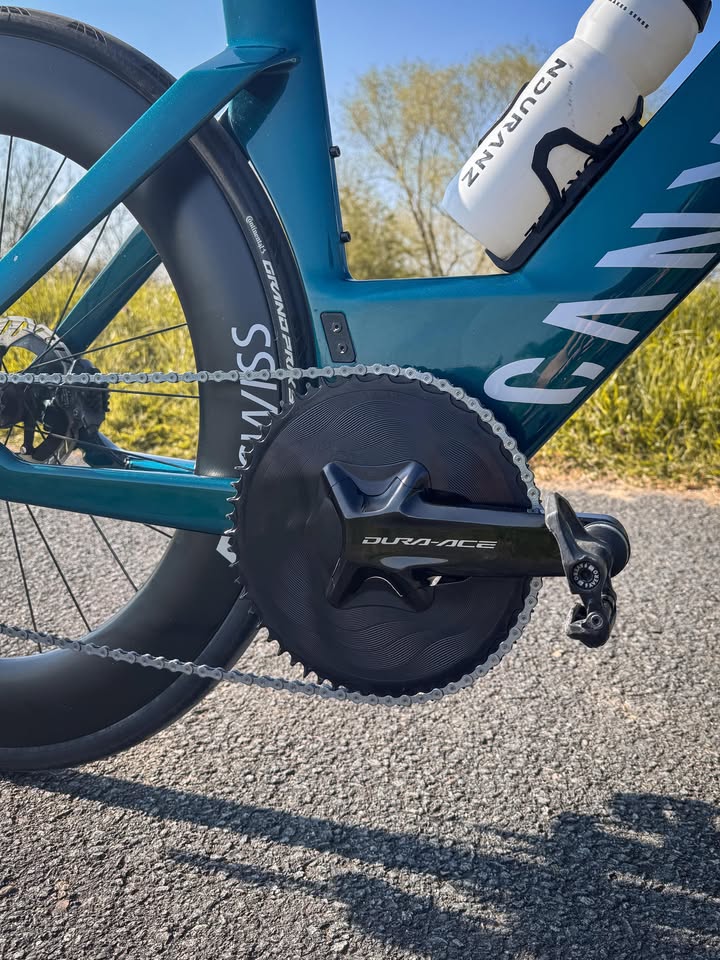

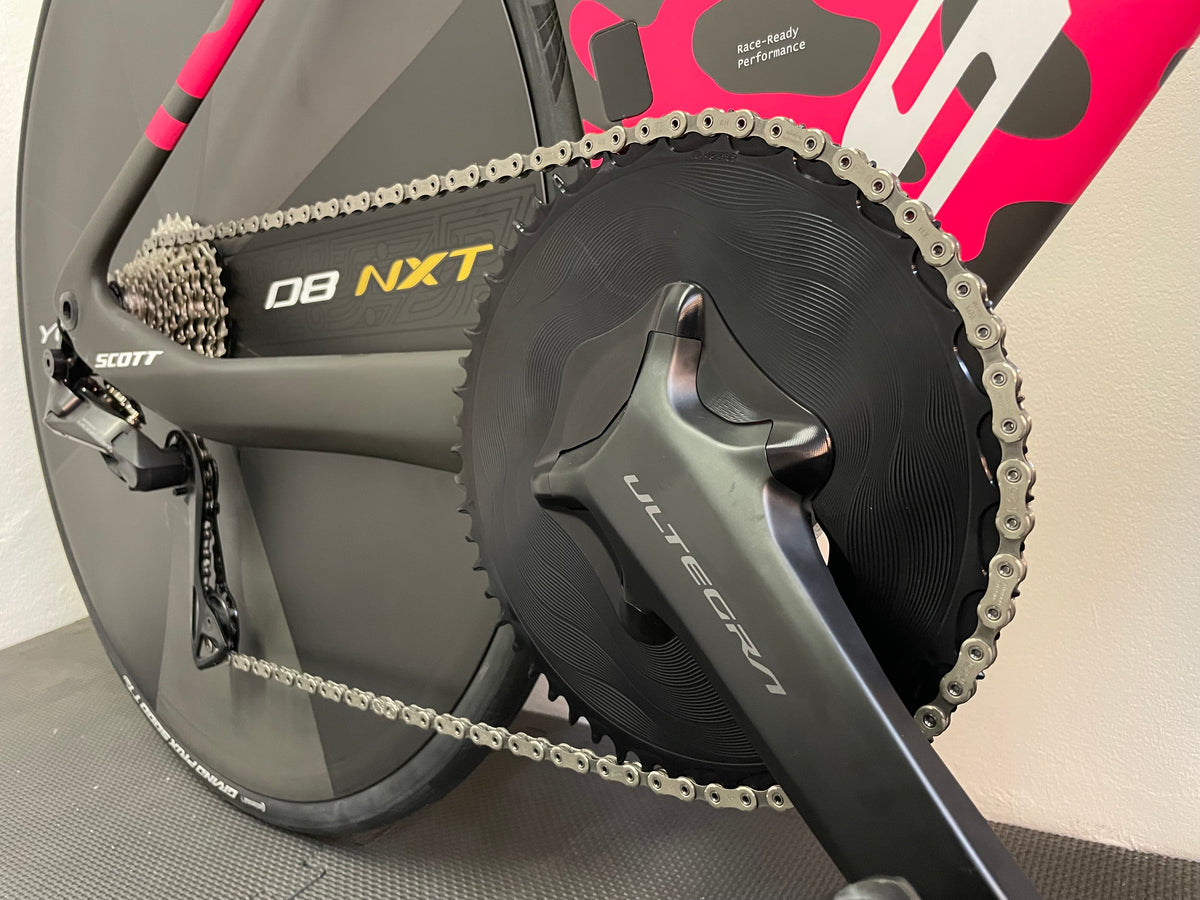

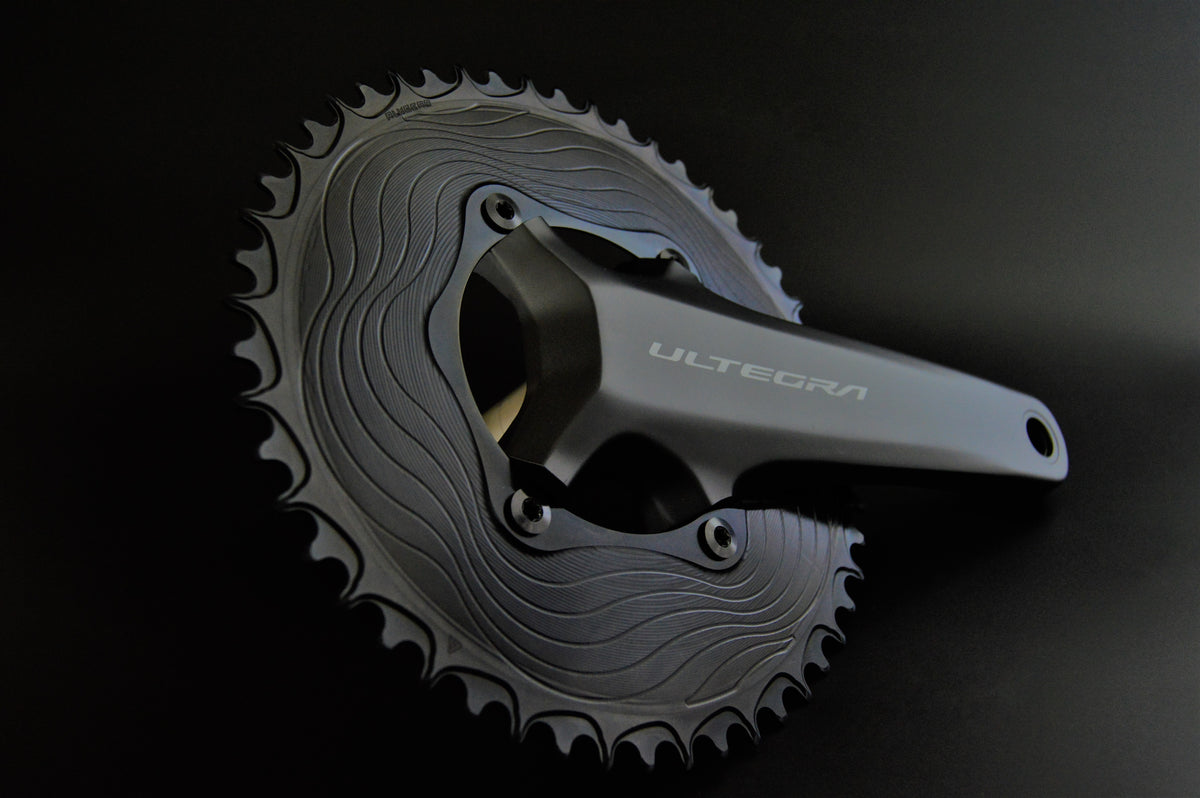

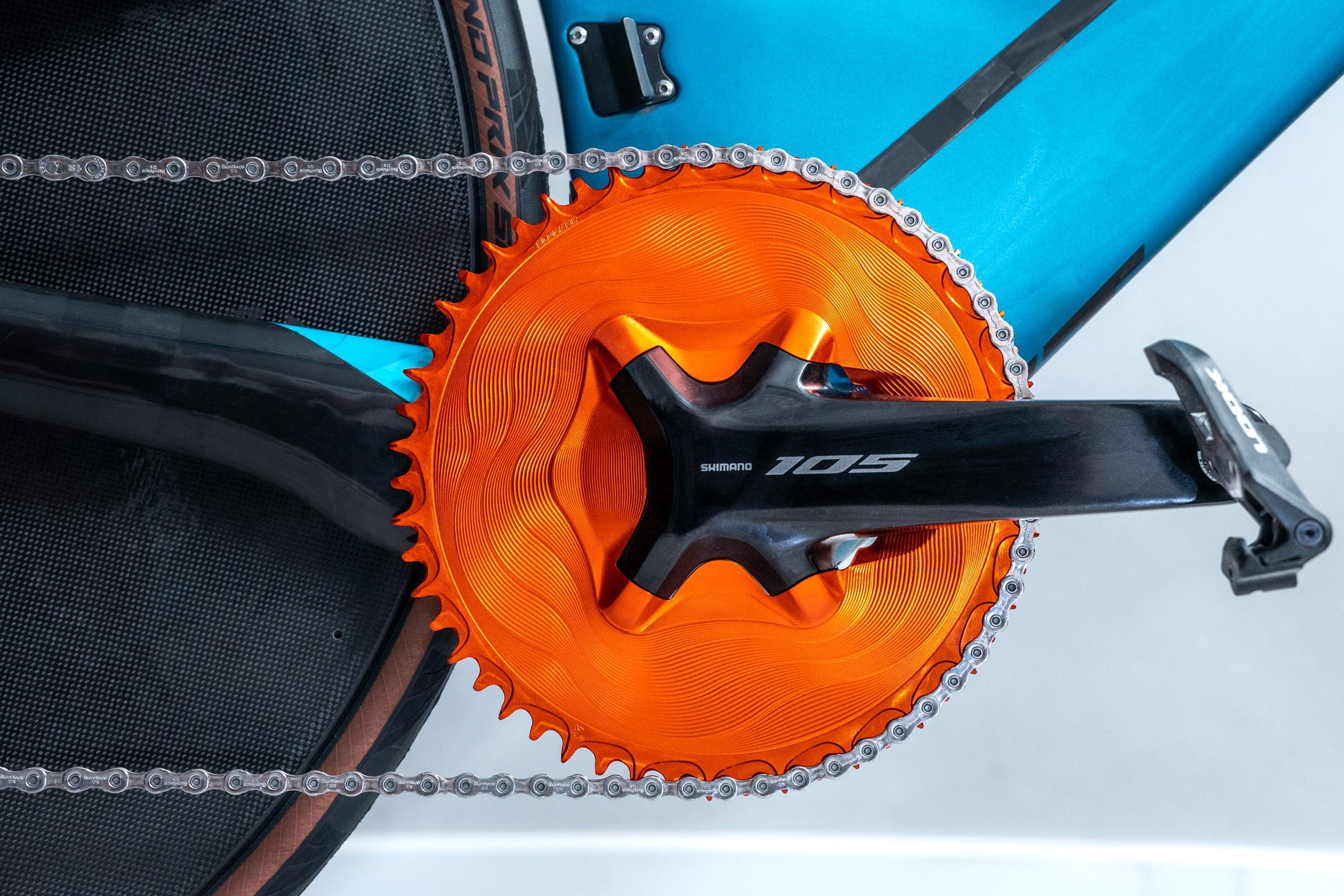

 For Shimano cranks with 110 mm Asymmetrical bolt circle diameter (4-arms): Dura-Ace R9200; Ultegra R8100; 105 R7100
DERAILLEUR
 Only for use with a single system without a front derailleur
COVERS
 with ALUGEAR Covers for 12sp. chainring

RECOMMENDATIONS

  • For the best appearance, you may use ALUGEAR AERO COVER (for 105 R7100 , Ultegra R8100 , R8100-P or Dura-Ace R9200 , R9200-P cranks)
  • Please use only original ALUGEAR Bolts during installation. Using other bolts may cause damage to the СOVER Also, you may use ALUGEAR chainring bolts and nuts for mounting: 7mm nuts and 6,5mm bolts are required
  • We recommend use of a clutch system rear derailleur for the best chain security
  • It is also a good idea to use a new chain with your new ALUGEAR chainring
